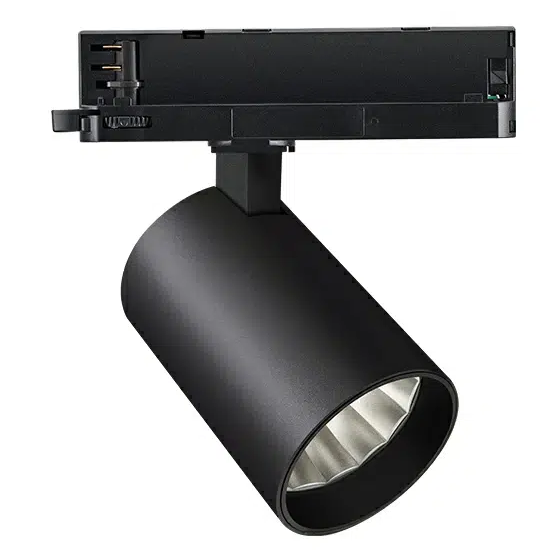

30W High Efficacy Reflector Track light In-track

Product Description

• ADC12 Die-casting aluminum with invisible screw design in appearance
• Optics interchangeable between Lens and Reflector, system efficacy 145lm/w.
• Optional beam angle from 15° to 60°.
• Vertical adjustable 355° / Horizontal adjustable 90°.
• Convectional thermal dissipation fins for better lifespan guarantee.
• Unique structure for SKD/efficient assembly, ZHAGA Compliant.
• Custom Zooming version available.

• Specification

  Overview

  Model	TL2503
  Power	30W
  Beam Angle	15 °/24 °/36 °/55 °
  Driver	GLOBAL/POWERGEAR
  Installation	3-phase / 1-phase
  Dimension	Φ90 x 110mm
  CCT	2700K/3000K/3500K/4000K
  CRI	90Ra/95Ra
  Luminous Flux	3300lm
  LED	Origin Bridgelux COB
  Color	White / Black / Custom
  Surface finish	Powder Coating
  Material	Die Casting Aluminum
  IP Rate	IP20
  Input Voltage	AC220-240V
  Vf & If	30-42V 750mA

•
